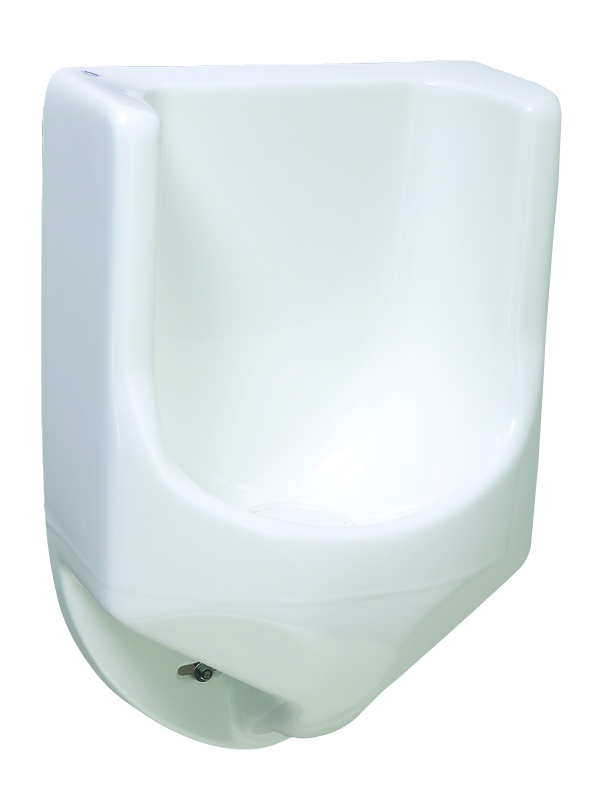

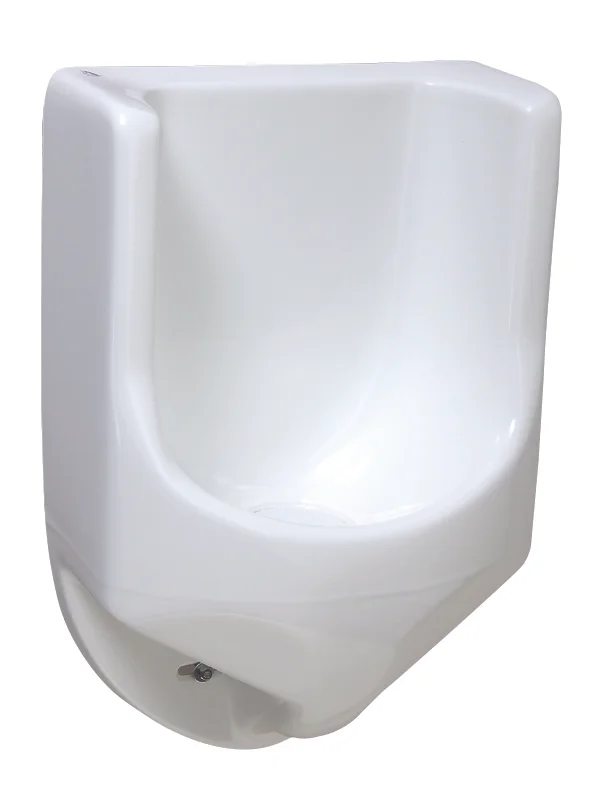

The Essentials!  iPack #6009



High Performance Composite (HPC)

The ORIGINAL, since 1991! Covers most urinal footprints.

18.0"W x 28.0"L x 10.0"D (458MM x 712MM x 254MM)

  • Complies with ANSI Z124.9,  A117, CSA® others

  • EcoTrap® Inside!!

  • Urinal comes with two EcoTrap® inserts, mounting hardware, gasket and installation instructions.

  • Item #5001 Brass Flange (not Included with urinal) - purchase separately, if needed, for new construction.

  • Available in standard sanitary white or color. Please inquire.


  • All wall drain No-Flush™ urinal models install like flushed urinals to the to the standard 2” (52mm) drain line via a gasket and flange. No adaptors needed!

  • All wall drain units have a closed urinal bottom to avoid vandalism. No need to buy separate costly bottom covers.

  • All of our urinals have a full 2” (52mm) interior drain line. This allows easy line cleaning and access if needed. Urinal does not need to be removed from wall for snaking. Saves time!

  • No gaskets or O-rings needed on EcoTrap® inserts. Simple pressfit!

  • The EcoTrap® unit removes completely for servicing and change-out. No taking traps apart for cleaning and to reassemble!
